Radio Controlled or "R/C" sailplanes are small to large usually engine-less model aircraft also known as gliders.
The sailplanes are constructed from a variety of materials including balsa wood, different kinds of foam, maybe some plastic, kevlar, carbon fiber
and epoxy, in various combinations of each. Sailplanes don't have or need engines to keep them flying, although many use
electric motors or even gas engines to spin propellers lifting the sailplanes to a high altitude. As in real (human piloted) gliders, R/C sailplanes
rely on the same mechanisms for gaining and keeping altitude: thermal and slope lift. Some people
think that you can just toss a sailplane into the wind and the plane will just rise like a kite
into the air. Instead, a sailplane that has no power will always be descending or falling downwards through the air. If the air below
the plane is happens to be rising faster than the plane is falling, the plane will rise with the air upwards, and then the real fun begins...
Sailplanes have some very nice traits in that they're noiseless, don't produce gas exhaust, need to continually charge
and recharged between flying sessions, or get a coat of
'slime' over every exposed surface of the airframe after being flown as in gas-powered planes.
Sailplanes have an advantage over motorized planes, either gas or electric, in that under certain conditions, can be flown for an hour or even longer. You don't just launch your sailplane and then glide down to the ground. You fly, fly, and fly until your eyes get tired or it's time to have lunch. The ultimate goal is to stay airborne and that means 'looking' for thermals or flying on the edge of a slope which gives the sailplane lift. Once your sailplane is aloft, regardless of how high, the sailplane may only remain in the air for a couple of minutes or less. However, if there is lift available and the pilot has gained a reasonable amount of experience, the sailplane can remain in the air continuously, riding on that lift...
Once you're in the 'lift', you rise or stay at the same altitude. There is something very special about launching a handlaunch glider in a small field, groping around for lift, finding some and then specking it (making the sailplane go so high that it is a 'speck' in the sky). Once you've done this with a sailplane, you will be hooked into this hobby for the rest of your life, so choose your hobbies carefully.
Sailplanes can be launched from the ground by merely throwing them to get altitude, known to the 'purest pilots' as Hand Launch Gliders or HLG, flying above the edge of windward facing slope, or by using a towing mechanism from the ground such as a long rubber band known as a hi-start or with an electric winch. (You can see a diagram of a hi-start here.) To get the sailplane to a high altitude means attaching your sailplane the line end of the hi-start with a ring on the hi-start and 'tow hook' on the bottom of the plane (just in front of the plane's center of gravity) and staking the rubber end into the ground. Start by stretching the rubber downwind and when there's enough tension (depends on the weight of the sailplane) releasing or sometimes throwing your sailplane up and into the wind. The hi-start will cause the plane to rise quite quickly depending on the weight of the sailplane, the tension on the hi-start, and the amount of wind that is blowing. Launches can be as high as the hi-start is long or even longer under good conditions.
Winch-driven launches can be higher than hi-start launches, and certainly are more convenient, but can also destroy a sailplane if too much force is applied to the sailplane during launch. Typically, there is a foot pedal that allows the pilot of the sailplane control over how much 'winching' occurs during a launch. Tapping the foot pedal can then modulate the force by turning on and off the winch.

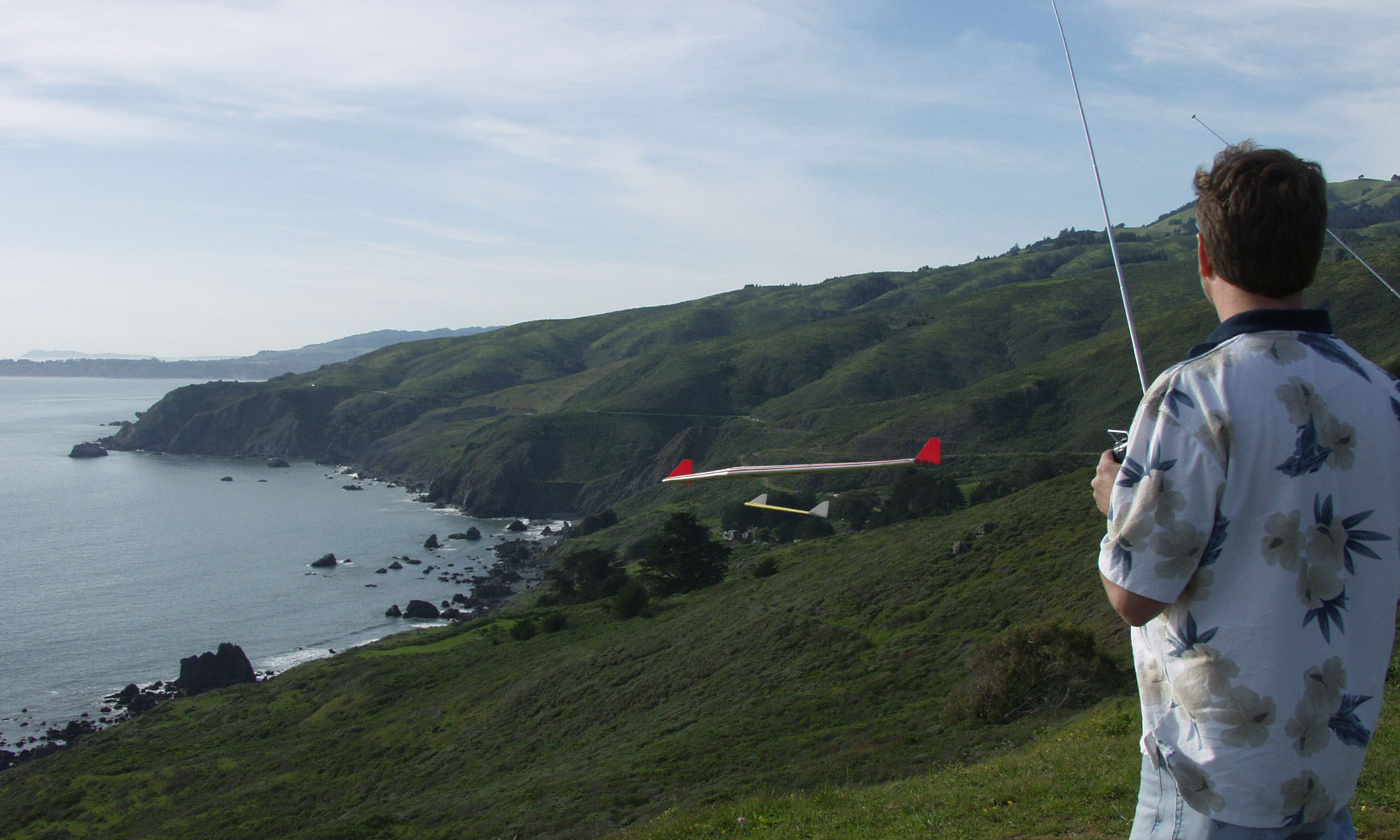

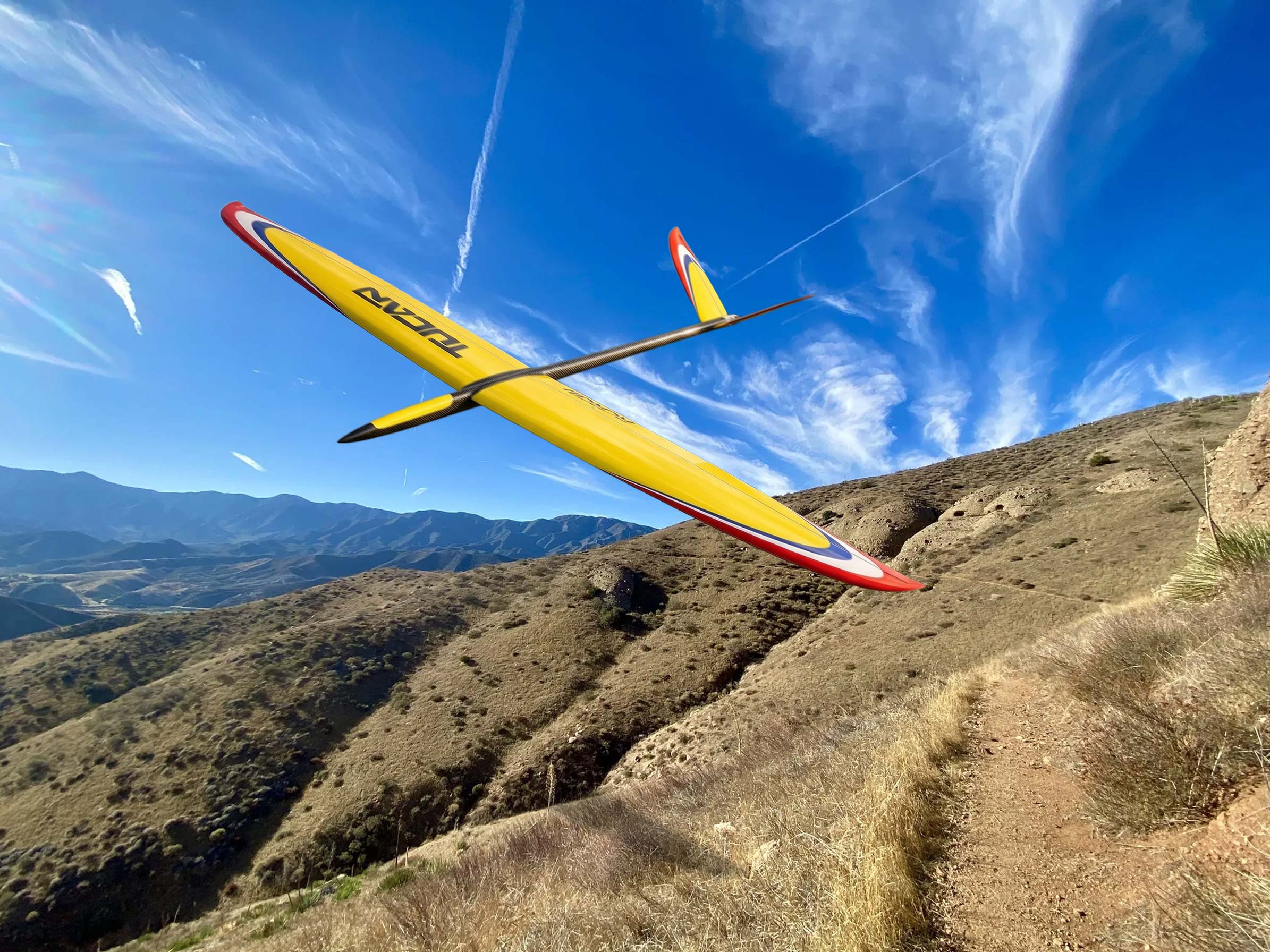

Launching sailplanes from a slope can be much easier. You don't need a hi-start or winch, you don't really have to search out thermals, instead you just give the glider a good toss into the wind. The rising air on the slope face provides the lift to keep the sailplane aloft. Keep the plane in the lift and the plane will continue to stay at the same altitude or rise. On good days, the only limitation of duration of a flight is the amount of available daylight or battery power for the radio equipment.
All classes of thermal sailplanes will work well on in a slope environment. The only potential problem about flying, say a handlaunch sailplane, on a slope is the amount of available lift can be too much for a sailplane designed for extracting every breath of lift available. I.E. You can't get the plane down on the ground again easily! For a slope, you can sacrifice lightness of construction and other efficiency in the airframe for a plane designed for speed and strength. It is not uncommon for some slope gliders to fly at speeds in excess of 120 mph or faster as long as the conditions permit this.
Thermal sailplanes generally fall into one of four categories:
- Handlaunch (HLG/DLG/F3K) - sailplanes with a wing span up to 1.5 meters (59-60").
- Two Meter - sailplanes with a wingspan up to 2 meters (78").
- Standard Class - sailplanes with a wingspan up to 100".
- Open Class - sailplanes that have wingspans greater than 100".
Slope sailplanes are in typically two categories:
Additionally, some of these planes can fall into multiple categories meaning that thermal planes can be flown equally well on the slope,
handlaunch planes can be thermalled like open-class sailplanes, etc. Sometimes I like to fly my handlaunch planes on the slope when the wind is light and
I fly some of my thermal duration or other open-class planes there too. Sometimes I even attach tow hooks on the bottom of my

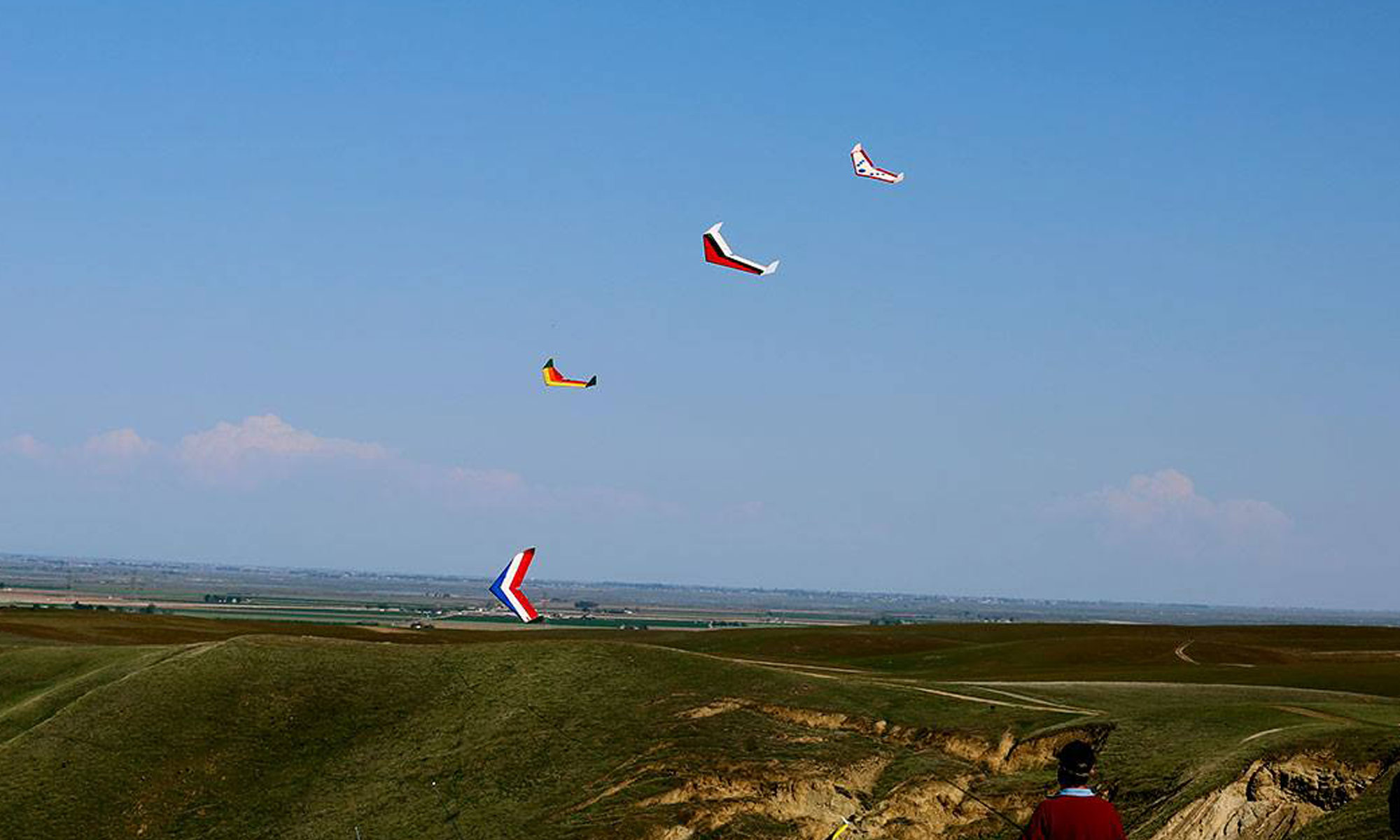

combat wings and shoot them into the air with a shortened high-start
for a quick combat session, when I'm not on the slope or there's no wind.
Here's a checklist of the things you need to do to get started in the R/C Sailplane hobby:
1. |
Find a good starter sailplane or inexpensive ARF (Almost-Ready-to-Fly) kit.
This kit probably should be 2-meter or shorter wing spans and use only rudder
and elevator for the controls.
For a beginner pilot, it's really important to try to select a plane that is made mostly or
entirely of Expanded Polypropylene (EPP) or the newer EPO foam.
Planes made of these foamy materials are very durable and simply don't break very easily,
even if you dive them vertically into the ground as they just tend to bend and bounce instead of break! This
gives you the chance to learn from your mistakes without having to constantly re-build your plane after each flying session.
You should really start with one of the Foam-based planes (for thermaling OR sloping), but there are a lot less to choose from these days. Many of the planes in my "hangar" just aren't available anymore. Some beginners have been learning to fly on a motor-glider: Night Radian. It's a plane made of EPO foam and is very durable - plus you don't really need to use the motor if you're flying on a slope. If you're a 'purist' and would rather build a more traditional kit out of balsa wood, there are several planes still available that have been teaching beginners over the years. Plane kits known as Goldberg's Gentle Lady or Great Planes Spirit were built by the thousands of hobbyists. I personally built several Mark's Models Wanderers, but alas that kit isn't available anymore either. However, Aloft Hobbies is now shipping The Mini Wanderer kits, so if you're still interested in building a "classic", then this and a few other balsa wood-based planes are available. You can browse for other 2 meter planes here: other sailplanes. However! Don't go wild and purchase a 'full-house' or 'open-class' sailplane as your first sailplane. A full-house sailplane is one that has many controls including ailerons, flaps, and possibly more and probably requires a computer radio to fly. It is ALWAYS better to buy a sailplane designed for a beginner (or novice) and learn to fly it before crashing a beautiful, carbon-fiber, $800+ investment into the hard ground. You can go buy one of those fancy planes later, after you've learned to fly. Up until recently, ARF sailplanes tended to be heavy and harder to repair than a built-up wood kit or even an EPP-based kit. Recently, however, there has been a rash of new ARFs manufactured in Taiwan, China, the Czech Republic, and other places around the world that are better built than before, however tend to be more expensive than doing it yourself. My choice for a beginner is to still build the plane yourself. And in doing this you will learn more about building and repairing if the plane does crash or you run over it accidentally with your car. The better kits have parts that are laser cut to a high degree of accuracy and usually go together a bit easier. I also prefer kits that have 'all hardware included' on the side of the box. For a beginner, this helps the builder understand what things like 'clevis' and 'pushrods' are and you won't need go on these shopping sprees at your local hobby store, grabbing everything in sight that you think you MUST buy, but don't end up using. A typical investment for a training sailplane in kit form is about $150-$200 including the kit, covering, glue, and other things that you'll need to finish the plane. Two-meter gliders usually accommodate the standard size radio equipment, which usually has a lower cost as well. In fact, due to recent advancement in radio technology, some very good radios that include a receiver and transmitter can be had for under $70. |
2. |
What is newest in radio control technology is the addition of 2.4GHz spread-spectrum-based radio controls.
With one of these radios, the transmitter
is matched with a receiver and this results in much less of a possibility
of frequency conflicts, unlike the 'old' days of fixed frequencies. The other nice thing about these radios is that each transmitter is essentially
in two-way communication with each receiver at a very fast frequency. These systems have less lag and better overall channel responsiveness.
Every major manufacturer has their own version of these systems now. Some of more affordable ones that can be used are:
Futaba 6JA 2.4 Ghz,
Tactic TTX660 6-Channel 2.4 Ghz FHSS,
and the super-cheap FlySky AFHDS 2.4 GHz radios.
Purchase a radio control system that has at least 4 channels of control and rechargeable batteries (NiCad, NiMH, LiPo, LiFe, or whatever they have these days - Hydrogen Fuel Cells probably will be next!). Up until recently, you had to spend about US$220 to get a decent radio. But there are some amazing radios that are priced way below $100 and still have spread-spectrum technology, such as the FlySky radios. The other thing to consider is that if you're living in the USA, you'll probably want to buy a radio system in Mode II rather than Mode I as people in North American tend to fly in Mode II and it's helpful to have the radios in the same mode. You can read about Mode I & II modes in the glossary. If you spend a little more for that first radio, you can get a transmitter that can be used for more than one plane. These transmitters have 'model memories' where each model can have a distinct profile stored in the transmitter. You won't outgrow one of these radios as you gain flying skills, build more planes, and want more features. But... I probably wouldn't buy the top o' the line computer radio as your first radio as they can be terribly frustrating to setup and program just to get 2 channels working with your new plane; not to mention they can cost thousands of dollars. You can read more information about radios by visiting the radios page. |
3. |
Build that plane!
Clear a space in your garage or some nice 'extra' room in your house for a building board that can accommodate at least 3' x 5' of flat building area. (I've built planes on smaller surfaces, but it's really nice to have some extra space for piling all those glue bottles, tape, coffee cups, etc.) My favorite choice for a building board surface is to use one of those ceiling tiles used in offices. They're available at most 'do-it-yourself' hardware stores and these tiles are cheap. Put a nice light above your board so that you can still read the plans late into the night (the 'best' time to work, right?). Here's some tips for building:
|
4. |
Join the Academy of Model Aeronautics (AMA). They, the AMA organization, are on your side.
They lobby for local and international interests with government organizations such as the FCC
(for radio frequency regulations), the FAA (for flying interests), and Congress. The AMA is also affiliated with the
National Aeronautic Association (NAA) and has representatives for the US in the Federation Aeronautique Internationale (FAI)
organization.
The AMA provides for up to $1,000,000 of liability insurance. Be aware that many flying clubs, organizations, fields, and contests require AMA membership in order to fly. You also get a subscription to a magazine known as 'Model Aviation' which contains up to date information about the AMA as well as kit plans, articles, and some of the latest tips from modelers all over the world. You can join AMA by contacting them at: |
5. |
Now learn to fly... BUT, most importantly:
GET HELP FROM AN EXPERIENCED FLYER!
Most R/C pilots enjoy helping new people into the hobby and you can really get a tremendous amount of experience by just talking to these 'veterans'. Most beginners that have had help on their first flight get to take their plane home without having to carry what's left in a bag, also known as 're-kitting' the plane. Some first time flyers assume, since they have had flying experience in full-size aircraft, that they can control their model the same way. The problem isn't that you already understand what it takes to fly, rather you need to teach your fingers or thumb to fly. Plus, the plane flies away and towards you, you need to be able to look at the plane and then determine what to do (with those fingers). Trust me, it isn't as complicated as it sounds, it just takes a bit of practice and it is absolutely more fun to fly a plane than it looks! |
